ARC10 Control Unit

Features ARC10 Control Unit

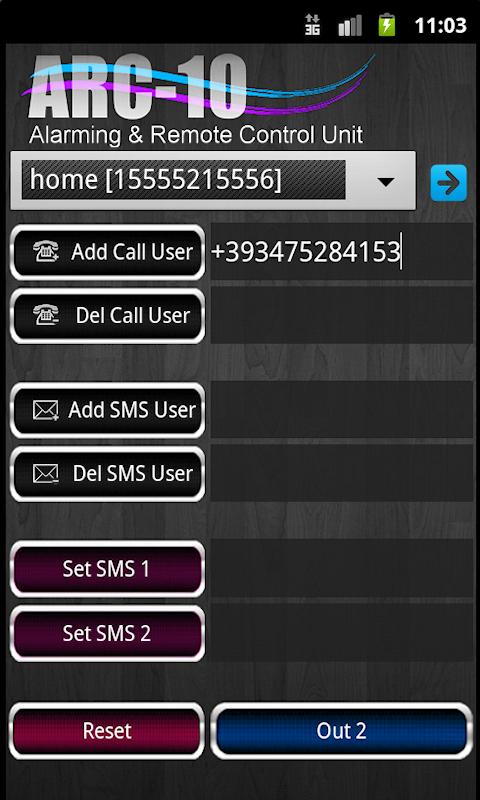

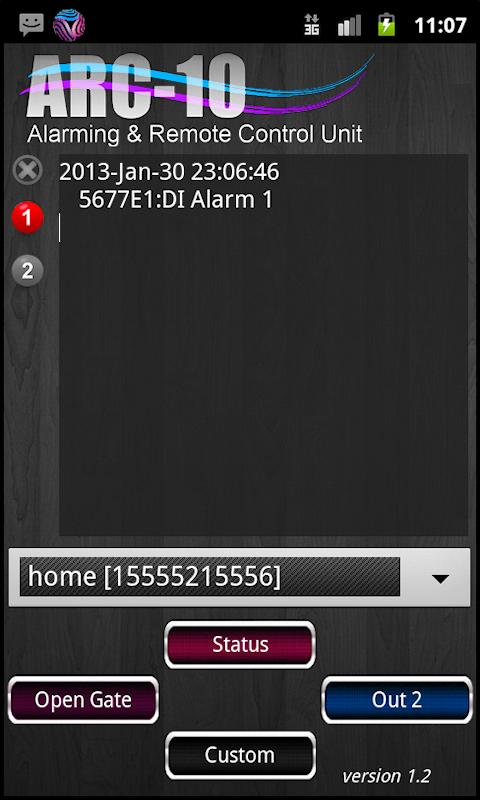

This application is a user friendly interface for sending commands and receiving alarms to/from the Infinite's ARC 10 GSM controller.ARC-10 is a top quality, easy to use GSM controller for alarming and remote control using SMS.
The rail mount unit incorporates a Quad Band (850/900/1800/1900MHz) GSM/GPRS modem, two digital inputs, two power relay outputs and a serial RS-232 port.
Up to five hundred users can be configured to switch a relay output with a toll-free phone call (e.g.
for opening the garage door or a parking barrier).
Ten users can be configured as alarm recipients.
All SMS functionality remains intact during GPRS operation.
This means one can use the unit as a wireless modem to communicate with a remote serial device e.g.
a traffic light controller or a vending machine and simultaneously benefit from the SMS alarming and remote control functionality.
Features-2 digital inputs.-2 power relay outputs.-One output can be configured to switch with a toll-free phone call.-Simple SMS commands for both configuration & control.-SMS commands can be passed through the local serial port for testing and commissioning.-Flexible user administration.-Simple setup and operation
All setup and control can be done using a mobile phone.
Simple ASCII configuration commands are used for unit setup and control.
Several commands can be packed in one SMS.
The RS-232 interface can be used to alternatively setup and test the unit using a PC or an ASCII terminal.
The rich command set features commands for configuring input alarm parameters, defining users and controlling system outputs with time related parameters.
Applications-Garage door or gate barrier opener-Vending machines-Security systems-Fire and smoke alarming-Lights control-Home automation-Heating control-Greenhouse controls
Manufacturer official website: http://www.infinite.com.gr/products/25
